DUCATI MONSTER 821 NEW 2016



Technical specification

Engine

Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
821cc
Bore x Stroke
88 x 67.5mm
Compression ratio
12.8:1
Power
82.4 kW (112 hp) @ 9,250 rpm
Torque
89.4 Nm (65.8 lb-ft) @ 7,750 rpm
Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Exhaust
Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes

Transmission


Gearbox
6 speed
Primary drive
Straight cut gears, ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Front sprocket 15; Rear sprocket 46
Clutch
APTC slipper and self-servo wet multiplate clutch with control cable

Chassis


Frame
Tubular steel Trellis frame attached to the cylinders head
Front suspension
Upside down 43mm forks
Front wheel
10-spoke in light alloy 3.50" x 17"
Front Tyre
120/70 ZR 17 Pirelli Diablo Rosso II
Rear suspension
Progressive linkage with adjustable monoshock. Aluminium double-sided swingarm
Rear wheel
10-spoke in light alloy 5.50" x 17"
Rear tyre
180/60 ZR17 Pirelli Diablo Rosso II
Front wheel travel
130mm (5.1in)
Rear wheel travel
140mm (5.5 in)
Front brake
2 x 320mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, radial pump with ABS as standard
Rear brake
245mm disc, 2-piston floating calliper with ABS as standard equipment
Instrumentation
LCD display

Dimensions and weight


Dry weight
179.5kg (395.7lb)
Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
205.5kg (453lb)
Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
Adjustable 785 - 810 mm (30.9 - 31.9)
Wheelbase
1480mm (58.3in)
Rake
24,3°
Trail
93.2mm (3.7in)
Fuel tank capacity
17.5l - (4.6 US gal)
Number of seats
Dual seat

Equipments


Standard Equipment

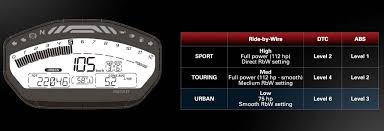

Riding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, seat cover passanger handles, ready for anti-theft system and DDA

Warranty


Warranty
24 months unlimited mileage
Maintenance service intervals
15.000km (9.000m)/12 Months
Valve clearance check
30.000km (18,000m)






















Standard
Euro 3
