Spesifikasi DUCATI TERBARU 2013

                                    DUCATI 2013





NEW DUCATI HYPERMOTARD
Sebenarnya saya belum pernah melihat wujud New Ducati Hypermotard secara langsung, kabarnya sih sekitar bulan Juli baru tiba di Indonesia, dan New Ducati Hypermotard sendiri di bandrol kisaran 320jeti On The Road Jawa Timur.

Dealer Ducati Jatim sudah membuka indent pada bulan Januari lalu, yakni, untuk pemesanan Ducati Diavelstrada, Hyperstrada dan New Hypermotard.

Untuk hitungan kreditnya pun sudah tersedia, yaitu melalui Mandiri Tunas Finance dengan tenor 11 bulan hingga 46 bulan dan untuk asuransinya sendiri bisa dipilih ALL RISK atau TLO.


1]#spesifikasi  HYPERMOTARD 3 VARIANT: 1 *HYPERSTRADA
                                                       2 *HYPERMOTARD BASE
                                                       3 *HYPERMOTARD SP






Technical specification :

Engine :
TypeTestastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement821.1cc
Bore x Stroke88 x 67,5 mm
Compression ratio12,8:1
Power81kW (110 hp) @ 9250rpm (35 Kw with output reduction )
Torque89 Nm (65.8 lb-ft) @ 7750 rpm
Fuel injectionMagneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system
ExhaustSingle stainless steel muffler with catalytic converter and two lambda probes.


Transmission :
Gearbox6 speed
Primary driveStraight cut gears, Ratio 1.85:1
Ratio1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final driveChain, Front sprocket 15, Rear sprocket 45
ClutchSlipper and self-servo wet multiplate clutch mechanically operated

Chassis :
FrameTubular steel Trellis frame
Front suspension43mm usd forks
Front wheel10-spoke in forged light alloy 3.50x17
Front TyrePirelli Scorpion Trail, 120/70 ZR17
Rear suspensionProgressive linkage with fully adjustable Sachs monoshock. Remote spring preload adjustement . Aluminium single-sided swingarm
Rear wheel10-spoke forged light alloy 5.50x17
Rear tyrePirelli Scorpion Trail, 180/55 ZR17
Front wheel travel150 mm (5.9 in)
Rear wheel travel150 mm (5.9 in)
Front brake2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake245 mm disc, 2-piston caliper, ABS 9MP as standard

Instrumentation :
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight :
Dry weight181kg (399lb)
Wet weight(KERB)204 kg (450 lb)
Seat height8850mm - 830mm - 810mm (33.5in - 32.7in - 31.9in )
Wheelbase1.500 mm (59.1 in)
Rake25,5°
Trail104mm (4.1In)
Fuel tank capacity16l - 4.2gallon (US)
Number of seatsDual seat

Equipments :
Standard EquipmentRiding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. 50 l (13.2 gal) semi-rigid side panniers with incorporated supports, touring windshield, touring seat, passenger grab handle, centre stand, larger front and rear mudguards, engine sump guard,two 12 V power outlets. Ready for anti-theft system, heated grips, sat-nav.

Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals15,000 km (9,000 mi)/12 months
Valve clearance check30,000 km (18,000 mi)

Emissions and Consumption :
StandardEuro 3 (Europe) - USA: follows the US Federal Regulation


















2]# MULTISTRADA 2 VARIANT : 1 *MULTISTRADA GRANTORISMO








Technical specification :

Engine
Type : L-Twin cylinder, 4 valve per cylinder, Desmodromic, Dual Spark, liquid cooled
Displacement : 1198.4cc
Bore x Stroke : 106x67.9mm
Compression ratio : 11.5:1
Power : 110.3kW ( 150HP ) @ 9250rpm
Torque : 124.5 Nm (91.8 lb-ft) @ 7,500 rpm
Fuel injection : Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
ExhaustStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Transmission
Gearbox : 6 speed
Primary drive : Straight cut gears, Ratio 1.84:1
Ratio : 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Final drive : Chain 5.30"; Front sprocket 15; Rear sprocket 40
Clutch : Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Chassis :
Frame : Tubular steel Trellis frame
Front suspension : Sachs 48mm fully adjustable usd forks. Electronic compression & rebound damping adjustment with Ducati Skyhook Suspension
Front wheel : 10-spoke in light alloy 3.50 x 17
Front Tyre : Pirelli Angel GT 120/70 17''
Rear suspension : Electronic compression & rebound damping adjustment. Electronic spring pre-load adjustment with DSS Aluminium single-sided swingarm.
Rear wheel : 10-spoke light alloy 6.00 x 17
Rear tyre : Pirelli Angel GT 190/55 17''
Front wheel travel : 170mm (6.7in)
Rear wheel travel : 170mm (6.7in)
Front brake : 2 x 320mm semi-floating discs, radially mounted Brembo callipers, 4-piston, 2-pad. ABS as standard equipment
Rear brake : 245mm disc, 2-piston caliper

Instrumentation :
Multifunction digital dashboard of two displays with white backlight. Main LCD display: odometer (total, trip 1 and trip2), speedometer, rev counter, clock, gear indicator, coolant temperature; fuel level. Circular LCD dot-matrix display: trip computer (riding style set-up, active riding parameters, remaining fuel/distance, current fuel consumption, average fuel consumption, average speed, air temperature, trip time), maintenance intervals indicator (Km), signaling alarms and errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (control power curve and throttle response, traction control, ABS, DSS). "Parking" and "Steering lock" indicators. Activation and adjustment heated-grips control function (Touring and Granturismo versions only). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight
Dry weight : 217kg (478lb)
Wet weight : (KERB)245kg (540lb)
Seat height : 850mm (33.5in)
Wheelbase : 1530mm (60.2in)
Rake : 25°
Trail : 110mm (4.33in)
Fuel tank capacity : 20l - 5.3 gallon (US)
Number of seats : Dual seat

Equipments
Standard Equipment : Riding Modes, Power Modes, DSS, Ducati Safety Pack (ABS + DTC), RbW, Hands-Free. 73 litre side luggage, 48 litre top case, internal soft bags, heated grips, centre stand, LED spot lights, engine potection-bars, extended screen, +20 mm higher handlebar, comfort seats

Warranty
Warranty : 2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption
StandardEuro 3 (Europe













                                     Multistrada 1200 S Granturismo



                                                         2* MULTISTRADA PIKES PEAK


                                     Multistrada 1200 S Pikes Peak


Technical specification

Engine :
Type : L-Twin cylinder, 4 valve per cylinder, Desmodromic, Dual Spark, liquid cooled
Displacement : 1198.4cc
Bore x Stroke : 106x67.9mm
Compression ratio : 11.5:1
Power : 110.3kW ( 150hp ) @ 9250rpm
Torque : 124.5 Nm (91.8 lb-ft) @ 7,500 rpm
Fuel injection : Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
ExhaustStainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes

Transmission :
Gearbox : 6 speed
Primary drive : Straight cut gears, Ratio 1.84:1
Ratio : 1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
Final drive : Chain 5.30"; Front sprocket 15; Rear sprocket 40
Clutch : Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run

Chassis :
Frame : Tubular steel Trellis frame
Front :  suspensionSachs 48mm fully adjustable usd forks. Electronic compression & rebound damping adjustment with Ducati Skyhook Suspension
Front wheel : 10-spoke in light alloy 3.50 x 17
Front Tyre : Pirelli Scorpion Trail 120/70 17''
Rear suspension : Electronic compression & rebound damping adjustment. Electronic spring pre-load adjustment with DSS Aluminium single-sided swingarm.
Rear wheel : 10-spoke light alloy 6.00 x 17
Rear tyre : Pirelli Scorpion Trail 190/55 17''
Front wheel travel : 170mm (6.7in)
Rear wheel travel : 170mm (6.7in)
Front brake : 2 x 320mm semi-floating discs, radially mounted Brembo callipers, 4-piston, 2-pad. ABS as standard equipment
Rear brake : 245mm disc, 2-piston caliper

Instrumentation
Multifunction digital dashboard of two displays with white backlight. Main LCD display: odometer (total, trip 1 and trip2), speedometer, rev counter, clock, gear indicator, coolant temperature; fuel level. Circular LCD dot-matrix display: trip computer (riding style set-up, active riding parameters, remaining fuel/distance, current fuel consumption, average fuel consumption, average speed, air temperature, trip time), maintenance intervals indicator (Km), signaling alarms and errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (control power curve and throttle response, traction control, ABS, DSS). "Parking" and "Steering lock" indicators. Activation and adjustment heated-grips control function (Touring and Granturismo versions only). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight :
Dry weight : 194kg (428lb)
Wet weight : (KERB)222kg (489lb)
Seat height : 850mm (33.5in)
Wheelbase : 1530mm (60.2in)
Rake : 25°
Trail : 110mm (4.33in)
Fuel tank capacity : 20l - 5.3 gallon (US)
Number of seats : Dual seat

Equipments :
Standard Equipment : Riding Modes, Power Modes, DSS, Ducati Safety Pack (ABS + DTC), RbW, Hands-Free. Marchesini forged wheels, carbon fibre components: racing screen, front mudguard, rear hugger, cam belt covers, lateral air extractors, front air intakes
Additional equipmentsTermignoni carbon fibre silencer (EU type approved only), original equipment screen

Warranty :
Warranty2 years unlimited mileage
Maintenance service intervals12.000 km (7,500m)
Valve clearance check24.000km (15,000m)
Emissions and Consumption
StandardEuro 3 (Europe)











3]# DIAVEL 3 VARIANT : 1* DIAVEL STRIP






                 3 *DIAVEL STRADA                                        2*DIAVEL DARK







4]# SUPERBIKE 2 VARIANT :                                   1* SUPERBIKE 848 CORSE SE

    2* PANIGALE ABS WHITE

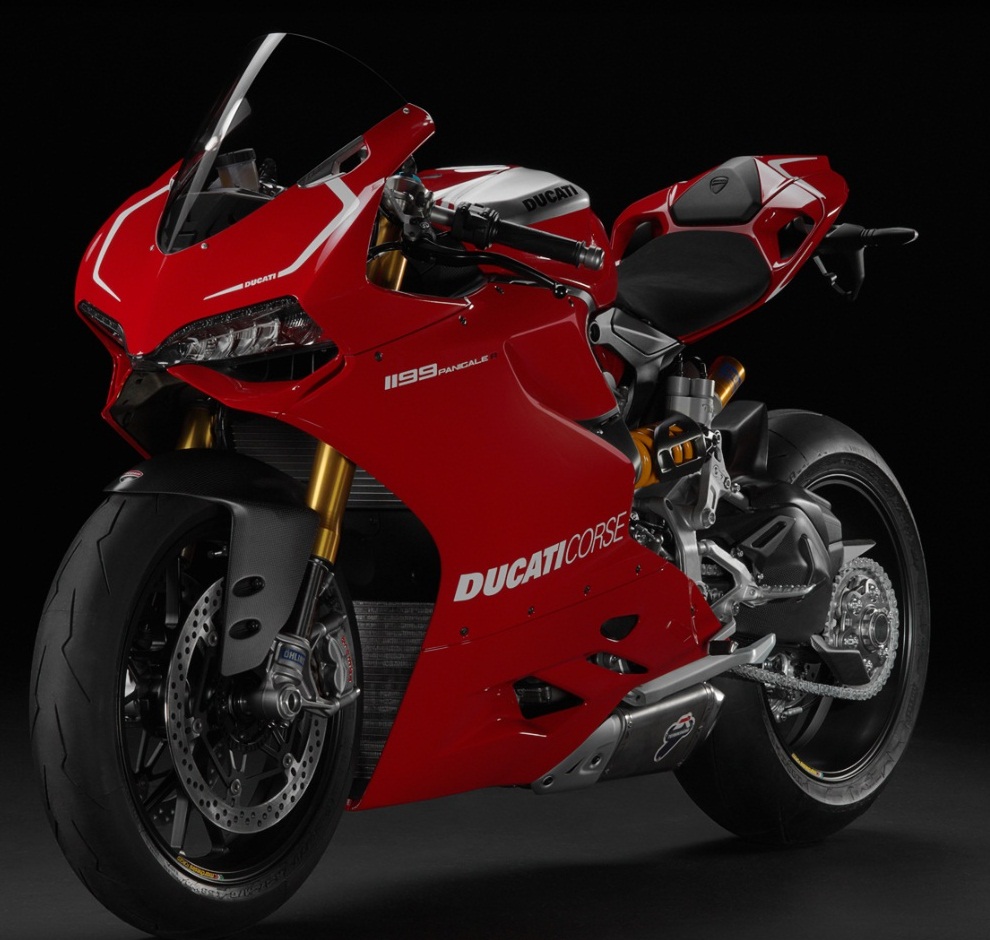

                                                       3* PANIGALE 1199 R









Technical specification :

Engine :
Type : Superquadro L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement : 1198cc
Bore x Stroke : 112x60.8mm
Compression ratio : 12.5:1
Power : 143 kW (195 hp) @ 10,750 rpm
Torque : 132 Nm (98.1 lb-ft) @ 9,000 rpm
Fuel injection : Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Exhaust : 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves

Transmission :
Gearbox : 6 speed
Primary driveStraight cut gears, Ratio 1.77:1
Ratio1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final driveChain 525; Front sprocket 15; Rear sprocket 39
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control

Chassis :
Frame : Monocoque Aluminium
Front suspension : Öhlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment
Front wheel : 3-spoke forged light alloy 3.50" x 17"
Front Tyre : 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspension : Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm.
Rear wheel : 3 spoke forged light alloy 6.00" x 17"
Rear tyre : 200/55 ZR17 Pirelli Diablo Supercorsa SP
Front wheel travel : 120mm (4.72in)
Rear wheel travel : 130mm (5.12in)
Front brake : 2 x 330mm semi-floating discs, radially mounted Brembo Monobloc M50- 4piston callipers with ABS
Rear brake : 245mm disc, 2-piston calliper with ABS

Instrumentation :
Digital unit with TFT colour display: rev counter, speed, gear selected, odometer [Menù 1: trip 1, trip 2, trip fuel], coolant temp [Menù 2: average and actual fuel comsumption, average speed, trip time, air temperature], lap times, selected Riding Mode, DTC level, EBC level, DQS status, ABS level, DDA status (only if mounted), GPS status (only if mounted), SERVICE, diagnostic, clock, full status and/or management of Riding Modes, ""Parking"" mode. Display lay-out: ROAD/TRACK (integrated with Riding Modes). Display backlight colours: DAY/NIGHT (manual or auto selection). Warning lights: oil pressure, neutral, EOBD, turn signals, fuel reserve, high-beam, ABS (if oem), over rev, DTC intervention, immobilizer (in Key-off). DES control (Electronic Suspension). Light control: automatic shutdown while engine start, automatic shutdown after 60s from key-on without engine ignition. All funtions integrated and managed by left and right handlebar switches

Dimensions and weight :
Dry weight : 165kg (364lb)
Wet weight : (KERB)189kg (417lb)
Seat height : 825mm (32.48in)
Wheelbase : 1437mm (56.6in)
Rake : 24°50'
Trail : 100mm (3.9in)
Fuel tank capacity : 17l - 4.5 gallon (US)
Number of seats : Dual seat

Equipments :
Standard Equipment : Riding Modes, Power Modes, ABS, DTC, DQS, DDA+, DES, EBC, Fully RbW. Titanium connecting rods. Carbon fibre components: swingarm guard, heel guards, cover for conveyors, switch gear cover, cover for rear shock absorber, rear and front mudguard, cover for clutch case.

Additional equipments :
Passenger seat and footpegs kit, Termignoni racing exhaust system, racing windshield, mirror plug in alluminium alloy

Warranty :
Warranty : 24 months unlimited mileage
Maintenance service : intervals12.000 km (7,500m) /12 months
Valve clearance : check24.000km (15,000m)

Emissions and Consumption :
Standard Euro 3 (Europe) - USA: follows the US Federal Regulation









                                                    4* PANIGALE 1199 RS
