MONSTER 796 ABS






                                       MONSTER 796 ABS

Technical specification

Engine

Type

L-Twin, 2 Desmodromically actuated valves per cylinder, air cooled

Displacement

803cc

Bore x Stroke

88 x 66 mm

Compression ratio

11:1

▂Power

64 kW (87 hp) @ 8,250 rpm

▂Torque

78 Nm (58 lb-ft) @ 6,250 rpm



Technical data referring to power and torque was measured on an engine test stand at Ducati.

Fuel injection

Electronic fuel injection, 45mm throttle body

Exhaust

Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Transmission

Gearbox

6 speed

Primary drive

Straight cut gears; Ratio 1.85:1

Ratio

1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26

Final drive

Chain; Front sprocket 15; Rear sprocket 39

Clutch

APTC wet multiplate with hydraulic control

Chassis

Frame

Tubular steel Trellis frame

Front suspension

43mm upside-down forks

Front wheel

Y-shaped, 5-spoke in light alloy 3.50 x17

Front Tyre

120/70 ZR17 Pirelli Diablo Rosso

Rear suspension

Progressive linkage with preload and rebound adjustable monoshock

Rear wheel

Y-shaped, 5-spoke in light alloy 5.50 x 17

Rear tyre

180/55 ZR17 Pirelli Diablo Rosso

Front wheel travel

120mm (4.7in)

Rear wheel travel

148mm (5.8in)

Front brake

2 x 320mm discs, 4-piston radial caliper

Rear brake

245mm disc, 2-piston caliper

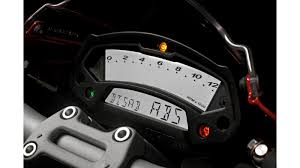

Instrumentation

Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.

Dimensions and weight

Dry weight

167kg (369lb) / 169kg (373lb) ABS version



Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.

Wet weight (KERB)

187kg (412lb)

ABS wet weight (KERB)

188kg (414.5 lb)



Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).

Seat height

800mm (31.5in)

Wheelbase

1450mm (57.1in)

Rake

24°

Trail

87mm (3,42 in)

Fuel tank capacity

15l - 3.8gallon (US) / 13.5l - 3.6gallon (US) ABS version

Number of seats

Dual seat

Warranty

Warranty

2 years unlimited mileage

Maintenance service intervals

12.000 km

Valve clearance check

12.000 km (7.500m)

Emissions and Consumption

Standard

Euro 3 (Europe version) - USA: follows the US Federal Regulation
